Nissan Frontier Coil Bucket Contact
If you’re researching lift options for your 2022+ Nissan Frontier (D41), you’ve probably heard people talk about coil bucket contact, UCA contact, or ball joint contact.
What is it? Why does it matter? And how do you fix it?

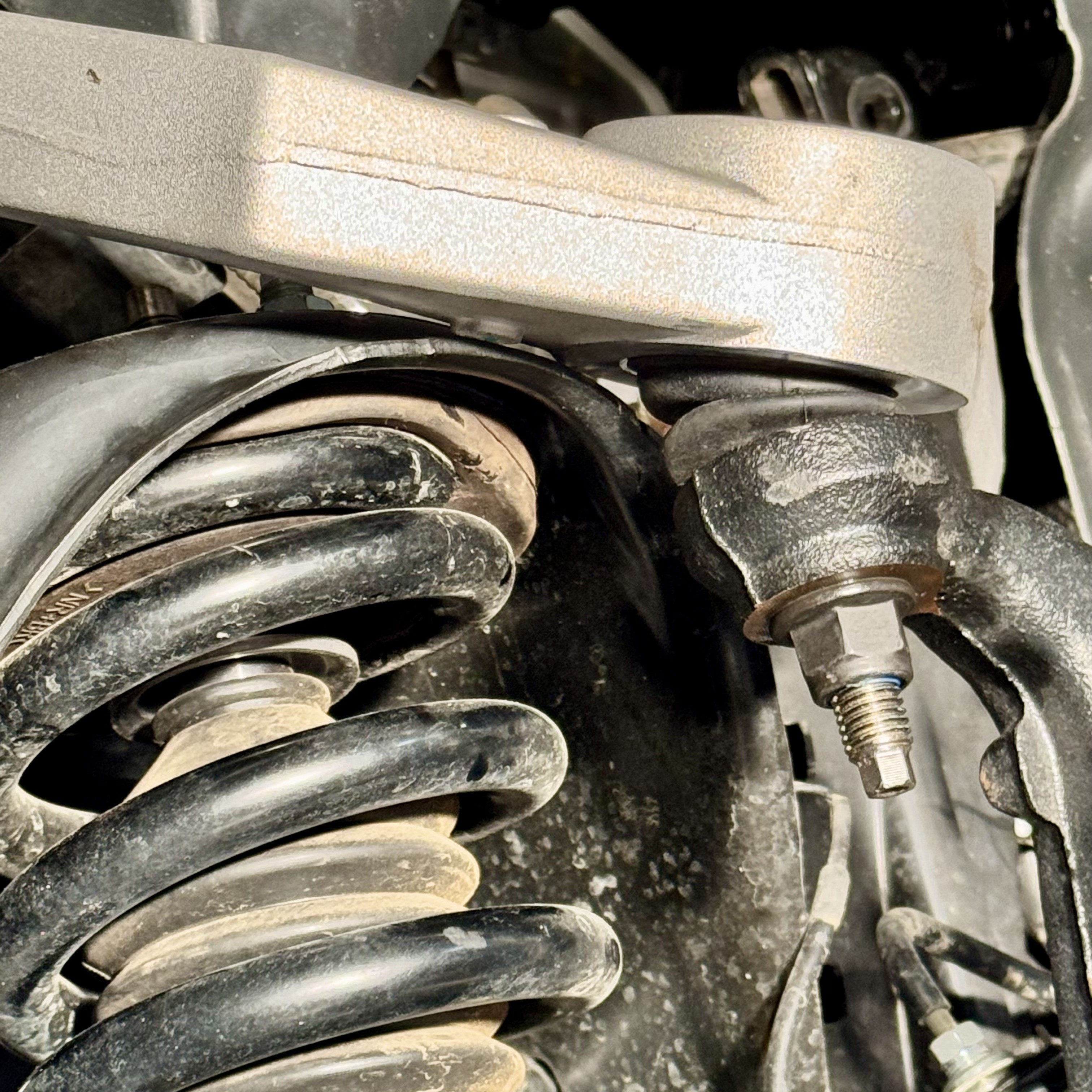

The coil bucket is the large stamped-steel housing on your Frontier’s frame that holds the top of the front coilover. It's part of the frame itself, not something you can just unbolt and replace.
When you lift the front of the truck (especially more than ~2 inches), you change the angle of the upper control arm (UCA). At certain points in the suspension’s travel—usually when drooping out—the UCA’s ball joint housing can hit (or contact) the coil bucket.
The D41 Frontier (like the older D40) uses an independent front suspension with upper and lower control arms.
When you lift it using spacers or using a shock with extended length without correcting the control arm geometry:
The UCA swings at a steeper angle.
At full droop (when the wheel is hanging down), the UCA’s ball joint can hit the coil bucket.
It’s not that the lift itself is bad... it’s that the geometry isn’t corrected for it.
It’s pretty obvious if you have it:
A metallic clunk or bang at full droop (like going over a big bump or dropping a wheel off a ledge).
You might see wear marks or dents on the coil bucket.
Damage: Repeated contact can dent or deform the coil bucket.
Ball Joint Wear: Impacts can damage the UCA ball joint.
Safety: Severe cases could compromise steering or suspension control.
Noise: It’s annoying (and a sign something is wrong).
Spacer lifts over 0.5" (especially cheap kits without UCAs).
Extended shock lengths of aftermarket suspension.
Off-road use with big suspension articulation.
The right way to avoid or fix coil bucket contact is to install aftermarket upper control arms (UCAs) designed for lifted trucks.
Aftermarket UCAs:
Use a revised ball joint angle to clear the coil bucket at droop.
Often have stronger ball joints or uniballs.
Improve alignment range after lifting.
1. Spacer lifts are cheap and easy if you stay at our under 0.5". However, they often lead to coil bucket contact if you skip UCAs and lift beyond 0.5".
2. Quality coilover lifts (like adjustable Bilsteins or aftermarket coilovers) extend the length of the shock and will likely need an aftermarket UCA.
3. For serious off-road use with a suspension lift, UCAs are pretty much mandatory if you want reliability from your setup.
If you’re planning a lift on your D41 Frontier, think beyond just the height. Avoiding coil bucket contact means choosing the right combo of:
Lift method
Coilover/shock setup
Upper control arms
We’re happy to help you figure out the best setup for your build—whether it’s a mild weekend warrior or a full-on overland rig.
